NXF UNS N10276 2.4819/NiMo16Cr15W/C276 Nickel Alloy Forging Technology Socket Welding 90°/45° Elbow

Product Description

C276 Introduction

Super alloys or high performance alloys are available in a variety of shapes and contain elements in different combinations to obtain a specific result. These alloys are of three types that include iron-based, cobalt-based and nickel-based alloys. The nickel-based and cobalt-based super alloys are available as cast or wrought based alloys according to composition and application.
Super alloys have good oxidation and creep resistance and can be strengthened by precipitation hardening, solid-solution hardening and work hardening methods. They can also function under high mechanical stress and high temperatures and also in places that require high surface stability.

HASTELLOY(r) C276 is a wrought corrosion-resistant alloy that resists the development of grain boundary precipitates that degrade corrosion resistance.

The following datasheet provides an overview of HASTELLOY(r) C276.

C276 Forging Technology Socket Welding 90°/45°Elbow Introduction

An Forged Socket weld elbow is installed between two lengths of pipe (or tubing) to permit a change of direction, typically a 90° or 45° angle The ends may be machined for butt welding, threaded (usually female), or socket. When the ends differ in size, it’s referred to as a reducing (or reducer) elbow.
A Forged 90º Socket weld elbow, also referred to as a “90 bend”, “90 ell” or “quarter bend”, attaches readily to plastic, copper, cast iron, steel, and lead, and is connected to rubber with stainless-steel clamps. Other available materials include silicone, rubber compounds, galvanized steel, and nylon. It’s primarily accustomed connect hoses to valves, water pumps and deck drains. A Forged 45º Socket weld elbow, additionally referred to as a “45 bend” or “45 ell”, is usually employed in water-supply facilities, food, chemical and electronic industrial pipeline networks, air-conditioning pipelines, agriculture and garden production, and solar-energy facility piping.

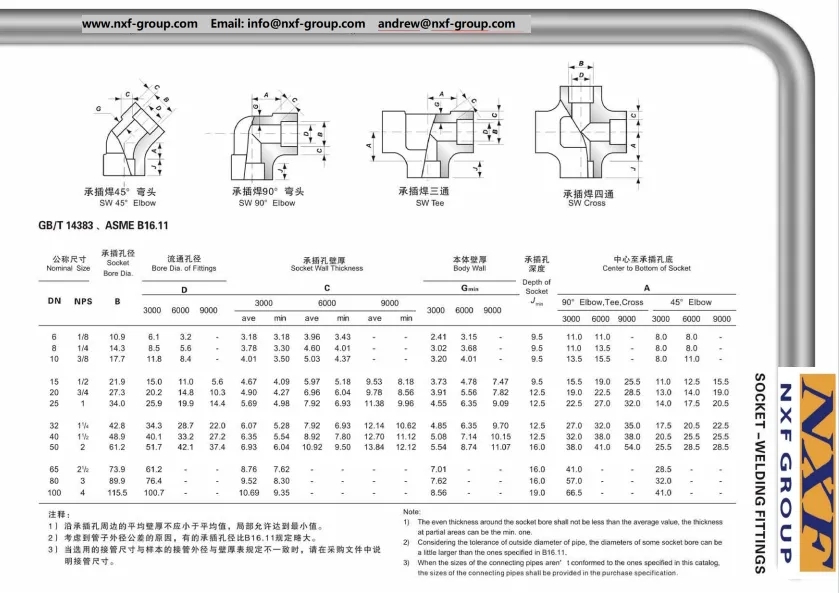

C276 Forging Technology Socket Welding 90°/45°Elbow Drawing

C276 Chemical composition and mechanical properties

Factory and Product Pictures

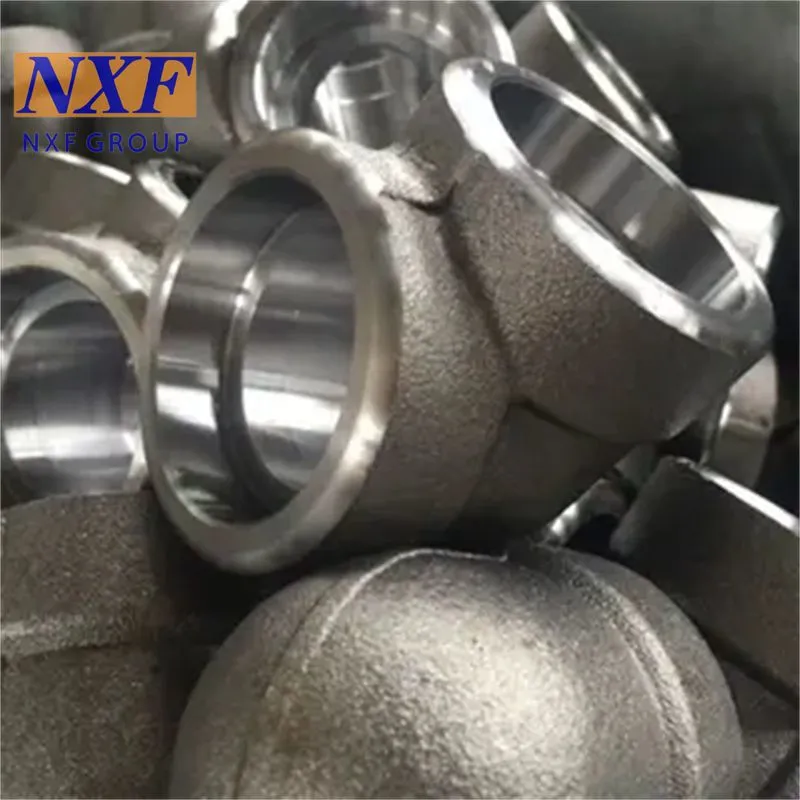

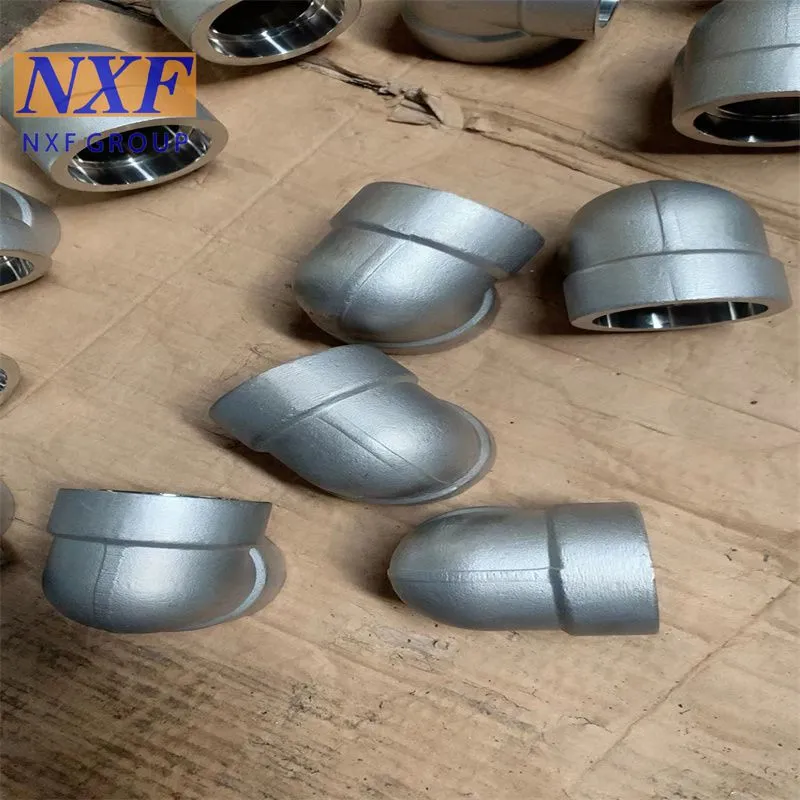

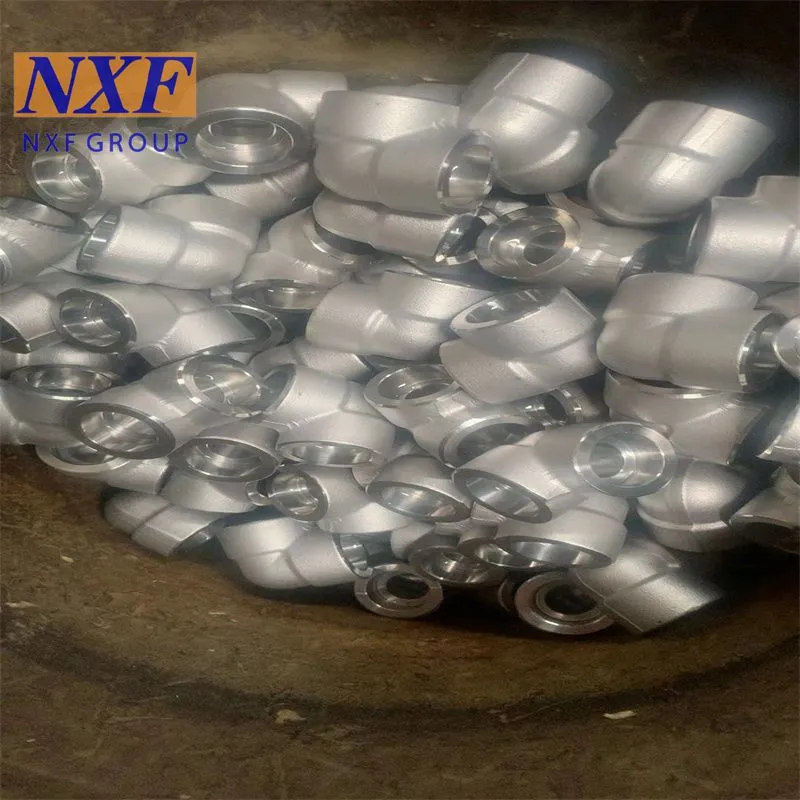

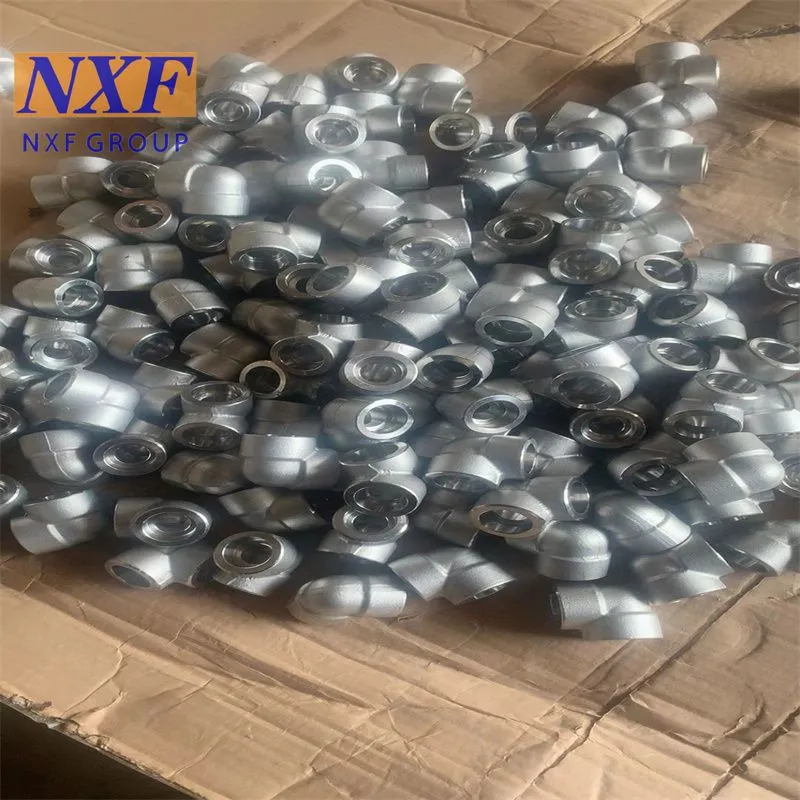

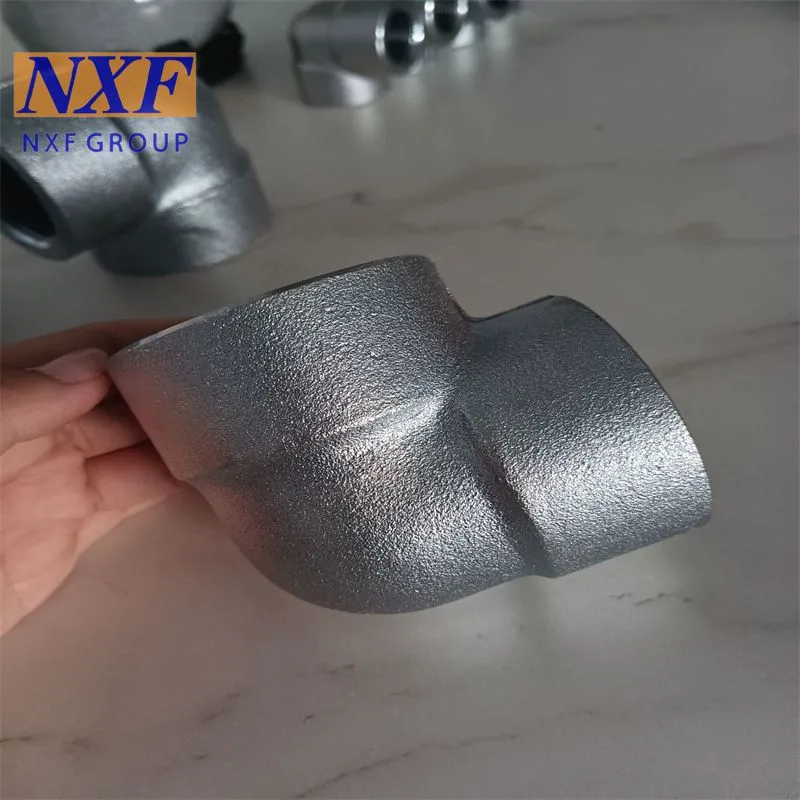

C276 Forging Technology Socket Welding 90°/45°Elbow Product Pictures

C276 PMI spectral testing proves

Product processing

C276 Forging Technology Socket Welding 90°/45°Elbow Processing

First, a polygonal ring shell with a polygonal cross-section or a polygonal fan-shaped shell with both ends closed is welded. After the interior is filled with pressure medium, internal pressure is applied. Under the action of internal pressure, the cross-section gradually changes from polygon to circle, and finally becomes a circular ring shell. According to needs, a circular ring shell can be cut into four 90 degree elbows or six 60 degree elbows or socket elbows of other specifications. This process is suitable for manufacturing socket elbows of any specification with a ratio of the elbow pitch diameter to the elbow inner diameter greater than 1.5. It is currently an ideal method for manufacturing socket elbows.

Our NXF GROUP advantage as follow

1.Our NXF GROUP have our own factory, and we can control the cost by producing by ourselves. We have a great advantage in price and can give you the lowest price based on best quality.
2.Our NXF GROUP can strictly control the quality. We have production, quality inspection, warehousing and other departments to coordinate and control the quality,Such as PMI and size testing.
3.Our NXF GROUP biggest advantage is 3S service. Small quantity, short time, special materials.
4.Our NXF GROUP have excellent quality certificate system and trademark certificate
5.Our NXF GROUP have a comprehensive after-sales service guarantee, such as the transaction guarantee provided by International Station, as well as remote technical guidance and services.
6.Our NXF GROUP have a well-established logistics support system that can save you both time and money, providing you with a one-stop service.

Packing & Delivery

Company Profile

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals,machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories.Established in1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and
Craftsmanship." Our advantage:3S Service(Small Quantity/Short Time/Special Material)

C276 Forging Technology Socket Welding 90°/45°Elbow Certifications

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material)         We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Russian
