NXF UNS N10276 2.4819/NiMo16Cr15W/C276 Nickel Alloy Forging Technology Threaded Union

Product Description

C276 Introduction

Super alloys or high performance alloys are available in a variety of shapes and contain elements in different combinations to obtain a specific result. These alloys are of three types that include iron-based, cobalt-based and nickel-based alloys. The ickel-based and cobalt-based super alloys are available as cast or wrought based alloys according to composition and application.
Super alloys have good oxidation and creep resistance and can be strengthened by precipitation hardening, solid-solution hardening and work hardening methods. They can also function under high mechanical stress and high temperatures and also in places that require high surface stability. HASTELLOY(r) C276 is a wrought corrosion-resistant alloy that resists the development of grain boundary precipitates that degrade corrosion resistance.
The following datasheet provides an overview of HASTELLOY(r) C276.

C276 Forging Technology Threaded Union Introduction

Forged Component Threaded Joints

1.Core Definition

The pipe connection is achieved by screwing the internal thread of the pipe onto the threaded joint (or screwing the external thread of the joint onto the pipe), utilizing the mechanical interlocking force of the threads to connect the pipeline, without the need for welding and allowing for quick disassembly.

2.Core feature Ease of
use: Installation and disassembly only require a wrench, resulting in high construction efficiency. It is suitable for pipelines
that need frequent maintenance (such as building fire branch pipes, factory compressed air branch lines). Pressure limit:
Generally applicable to medium and low pressure scenarios with a maximum of 1500LB. Long-term vibration may cause thread loosening and leakage. Sealing assistance: Dependent on auxiliary sealing materials such as tape and sealant, the sealing reliability is weaker than socket welding.

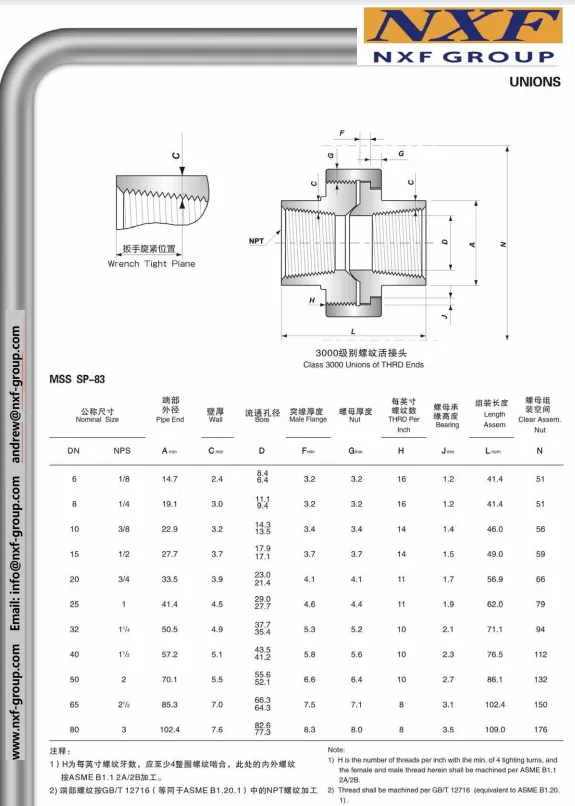

C276 Forging Technology Threaded Union Drawing

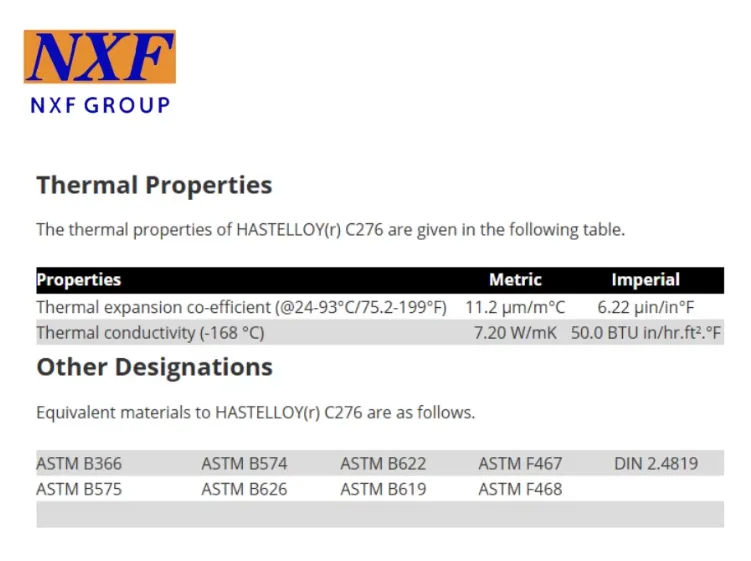

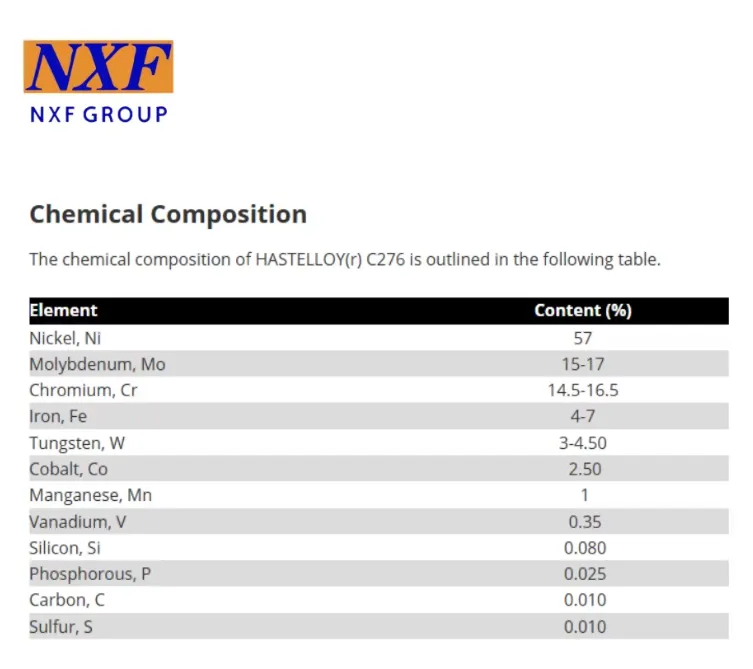

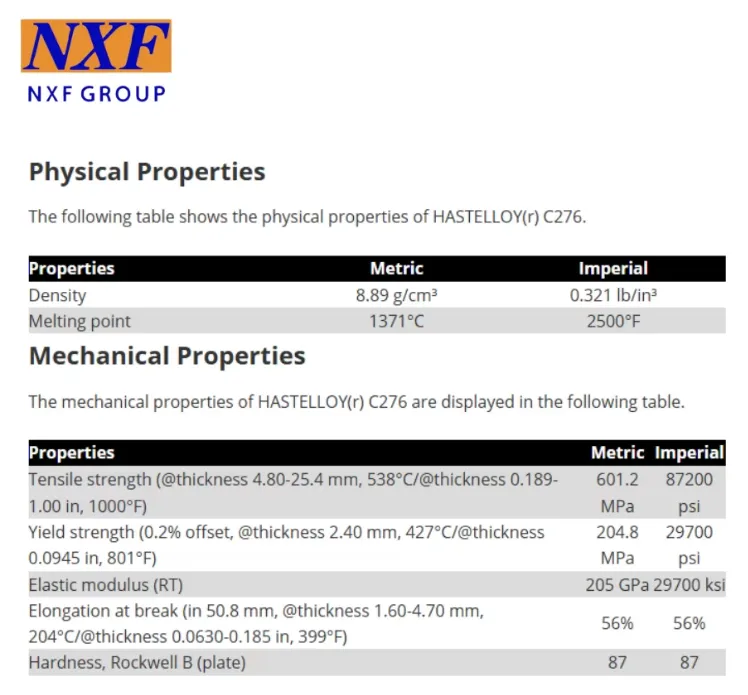

C276 Chemical composition and mechanical properties

Factory and Product Pictures

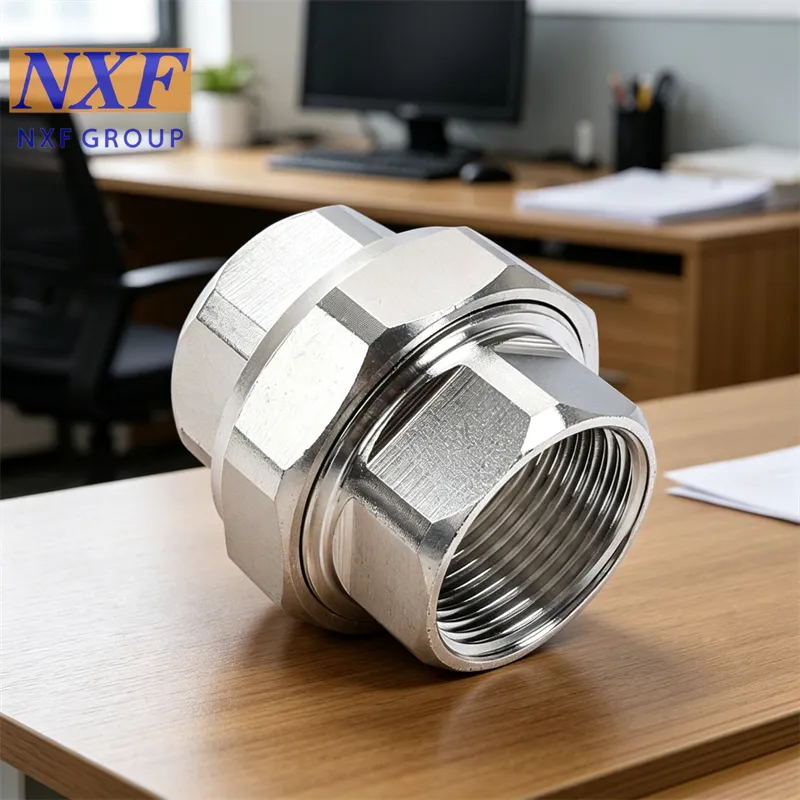

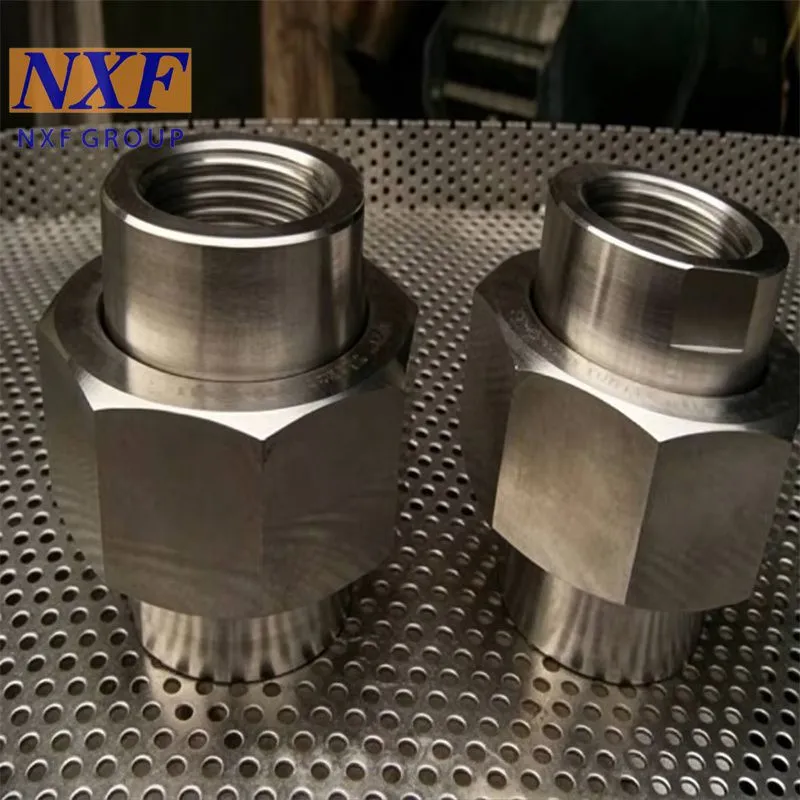

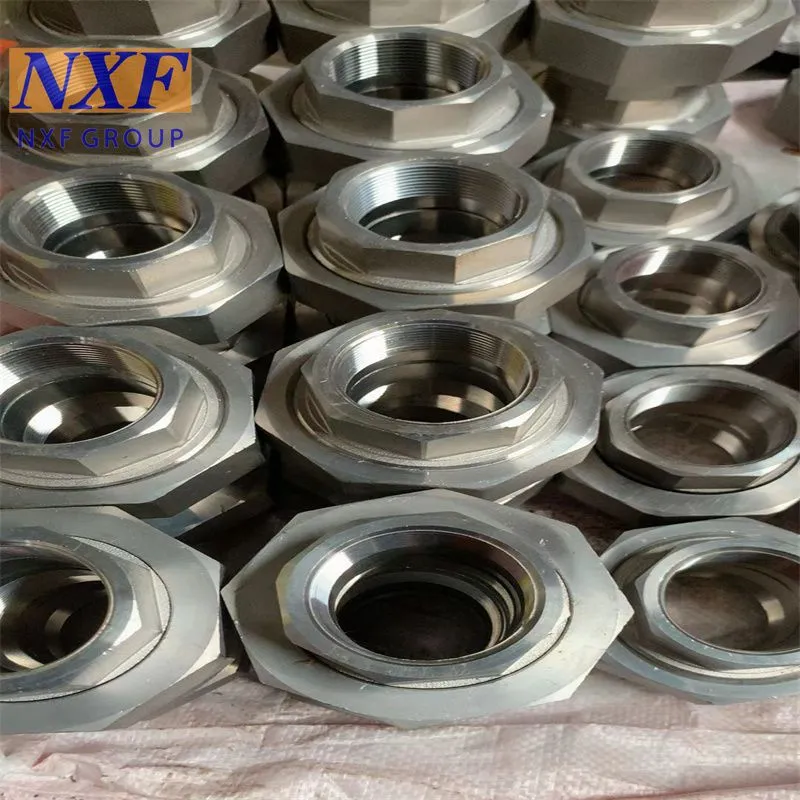

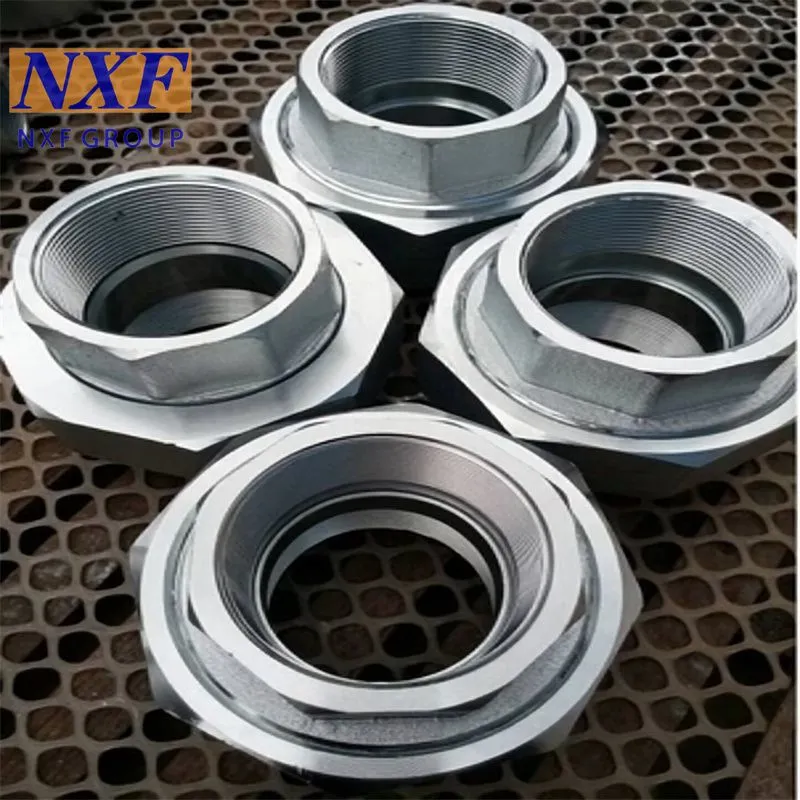

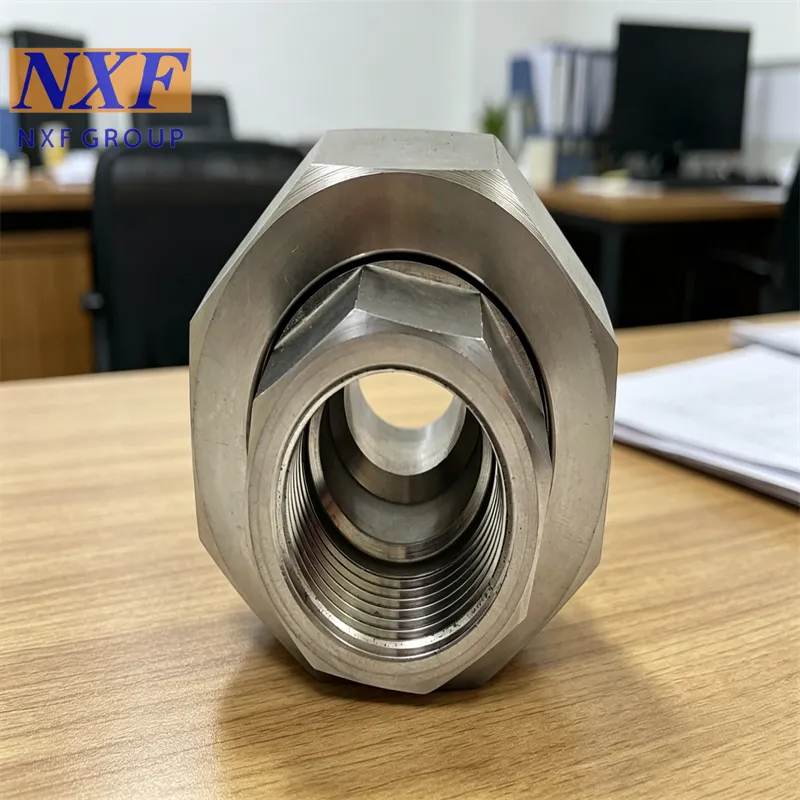

C276 Forging Technology Threaded Union Product Pictures

C276 PMI spectral testing proves

Product processing

C276 Forging Technology Threaded Union Product Processing

1. Material selection: Choose appropriate materials, such as steel, stainless steel, and aluminum alloy, based on specific
requirements. Select the hardness, corrosion resistance, and other properties of the materials.

2. Blank forming: The pipe fittings are mainly formed by pressing and forging round steel or steel ingots into blanks.

3. Machining: The blanks are machined using a lathe, including designing the parameters of the threaded joints, selecting appropriate machining tools and materials, and performing pre-processing (coarse and fine machining) steps. During the coarse machining stage, a thread milling machine or thread broaching machine is used for initial processing; in the fine machining stage, a precision lathe is used for meticulous processing to ensure the accuracy and surface quality of the joints.

4. Post-processing techniques: After processing, post-processing techniques such as deburring, grinding, and surface treatment are carried out to improve the durability and appearance of the joints.

5. Quality review: Measure and inspect the dimensions, shapes, and surface quality of the threads to ensure that the
joints meet the design requirements.

6. Assembly and inspection: Perform the assembly and inspection of the threaded joints through a strict assembly and inspection process to ensure that each joint meets the high-quality and high-performance standards.

Our NXF GROUP advantage as follow:

1.Our NXF GROUP have our own factory, and we can control the cost by producing by ourselves. We have a great advantage in price and can give you the lowest price based on best quality.

2.Our NXF GROUP can strictly control the quality. We have production, quality inspection, warehousing and other departments to coordinate and control the quality,Such as PMI and size testing.

3.Our NXF GROUP biggest advantage is 3S service. Small quantity, short time, special materials.

4.Our NXF GROUP have excellent quality certificate system and trademark certificate

5.Our NXF GROUP have a comprehensive after-sales service guarantee, such as the transaction guarantee provided by Alibaba International Station, as well as remote technical guidance and services.

6.Our NXF GROUP have a well-established logistics support system that can save you both time and money, providing you
with a one-stop service.

Packing & Delivery

Company Profile

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship."

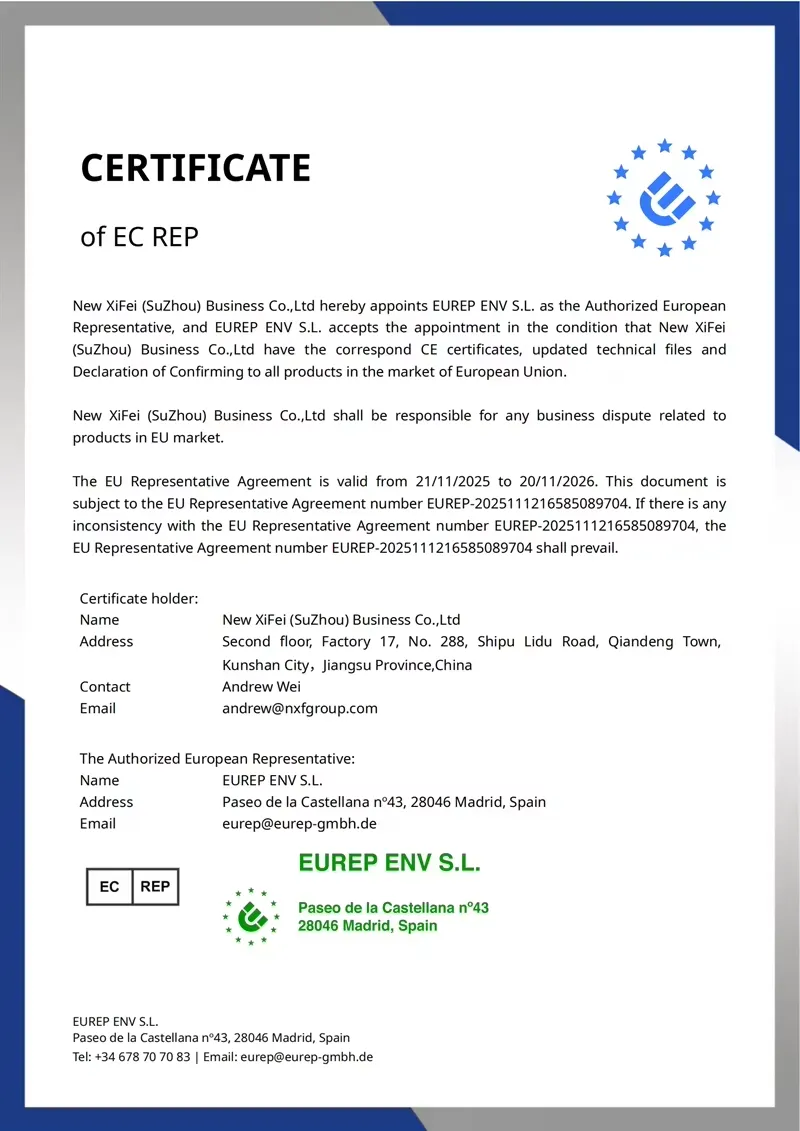

C276 Forging Technology Threaded Union Certifications

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material)         We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Russian
