NXF UNS N10276 2.4819/NiMo16Cr15W/C276 OD DN15-1200 Thickness SCH10-XXS Nickel Alloy Butt Welding Ca

Product Description

C276 Introduction

Super alloys or high performance alloys are available in a variety of shapes and contain elements in different combinations to obtain a specific result. These alloys are of three types that include iron-based, cobalt-based and nickel-based alloys. The nickel-based and cobalt-based super alloys are available as cast or wrought based alloys according to composition and application.
Super alloys have good oxidation and creep resistance and can be strengthened by precipitation hardening, solid-solution hardening and work hardening methods. They can also function under high mechanical stress and high temperatures and also in places that require high surface stability.
HASTELLOY(r) C276 is a wrought corrosion-resistant alloy that resists the development of grain boundary precipitates that degrade corrosion resistance.
The following datasheet provides an overview of HASTELLOY(r) C276.

C276 Butt Welding Cap Introduction

Butt weld caps are one type of butt weld pipe fitting. Because they are primarily used for sealing the ends of pipes, their application frequency is generally lower than that of butt weld elbows, tees, reducers, and other butt weld fittings.

Butt weld caps also connect to the end of a pipe through welding, serving as a pipe seal to prevent media flow or protect the pipe end face. Butt weld caps are typically designed to be circular, with one end being a closed hemispherical, elliptical, or flat-bottomed shape, and the other end being a beveled end for easy butt welding to the pipe.

Butt weld caps are used in pressure piping systems in the petroleum, chemical, natural gas, power, shipbuilding, and

pharmaceutical industries. Their main functions include:

Sealing pipes: Used at the ends of pipes to prevent media leakage or the entry of foreign objects.

System testing: Used as a temporary or long-term seal during pipeline pressure testing or system maintenance.

Protective function: Protects pipe ends from corrosion or mechanical damage.

Equipment encapsulation: Used for sealing openings in equipment such as storage tanks and reactors.

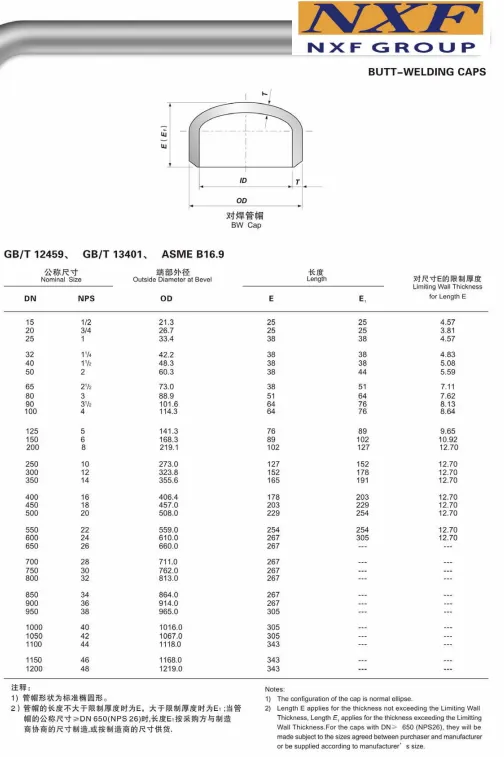

C276 Butt Welding Cap Drawing

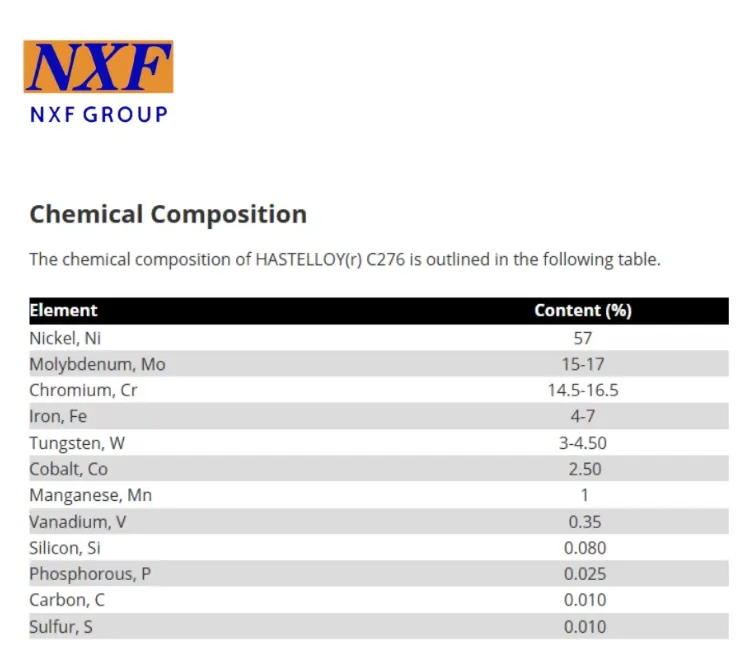

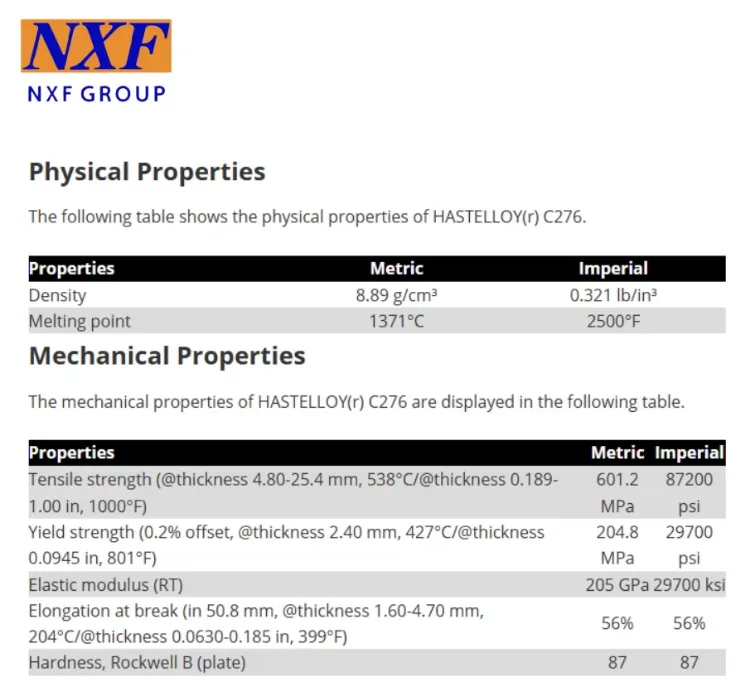

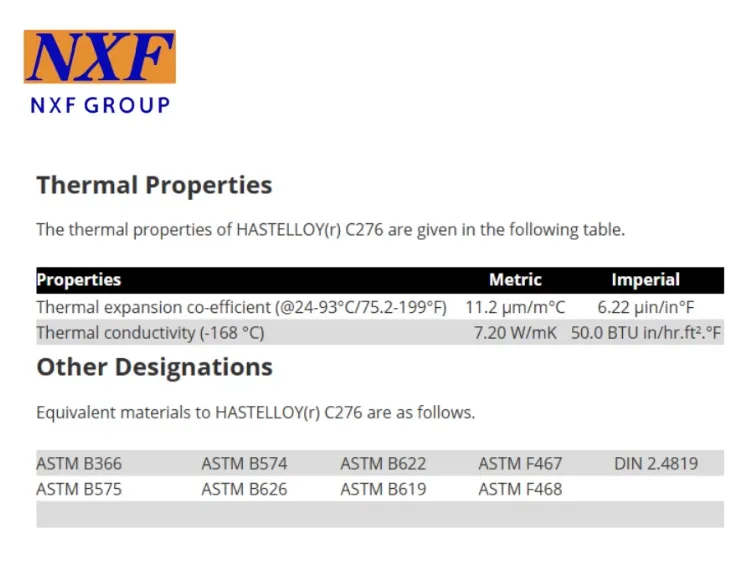

C276 Chemical composition and mechanical properties

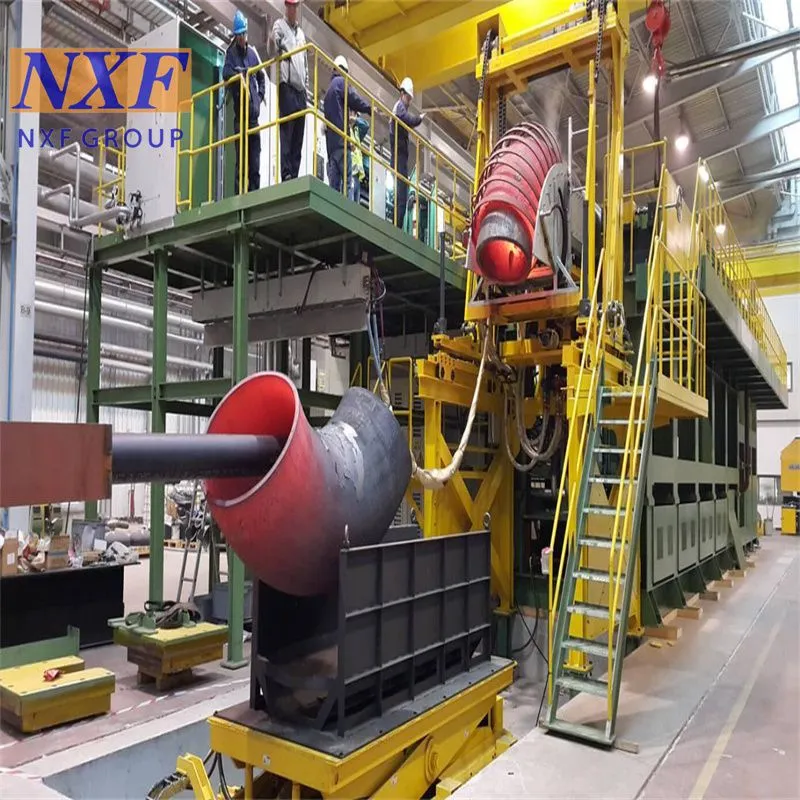

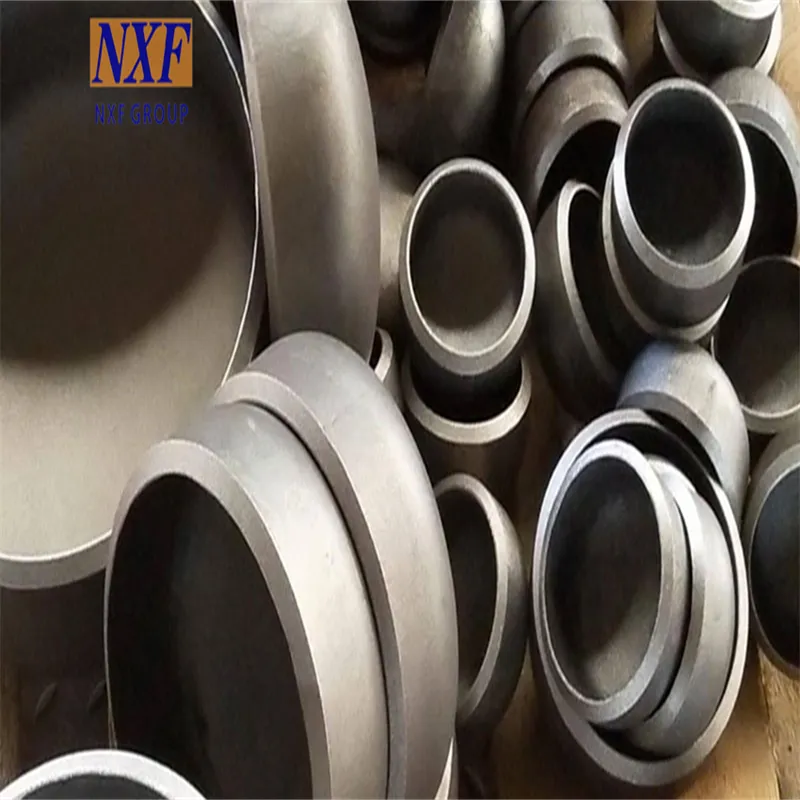

Factory and Product Pictures

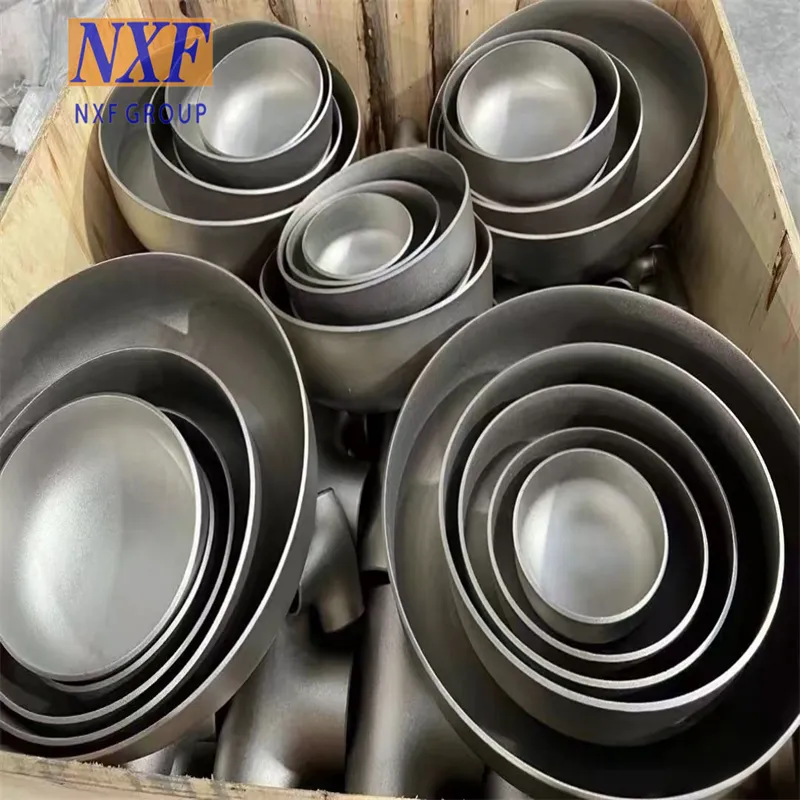

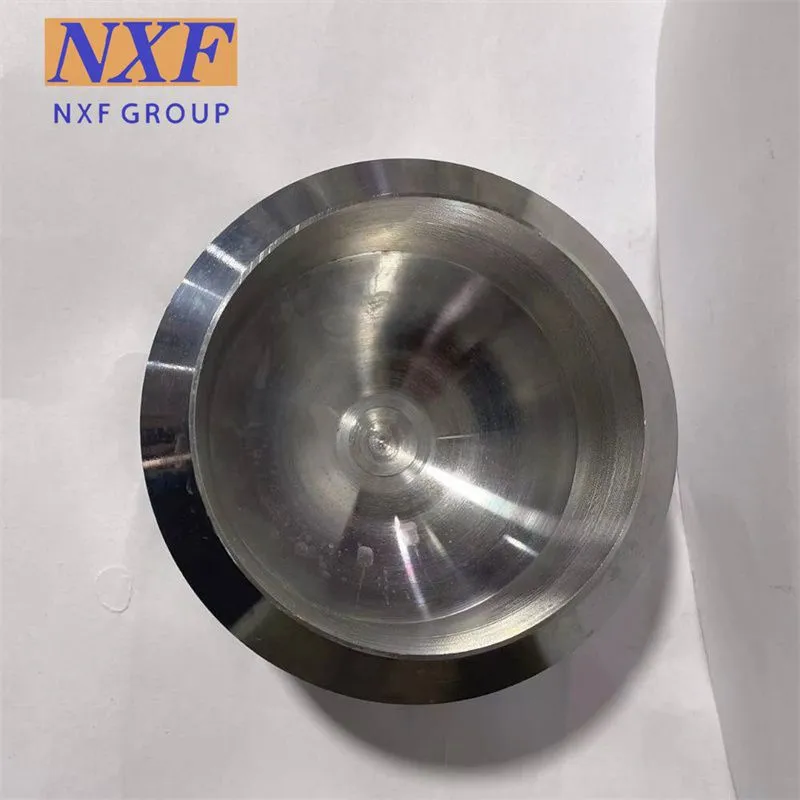

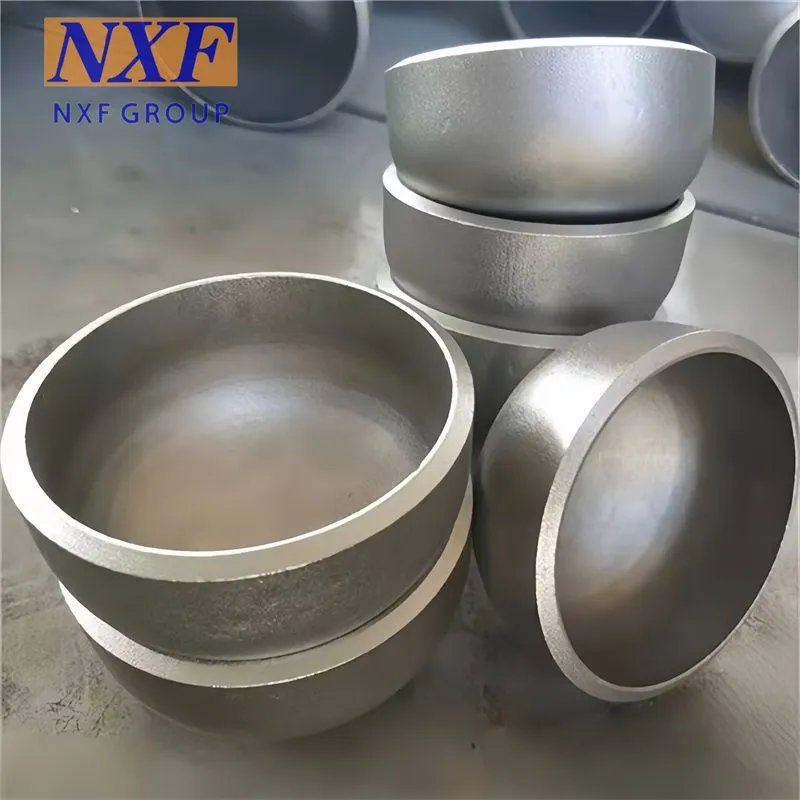

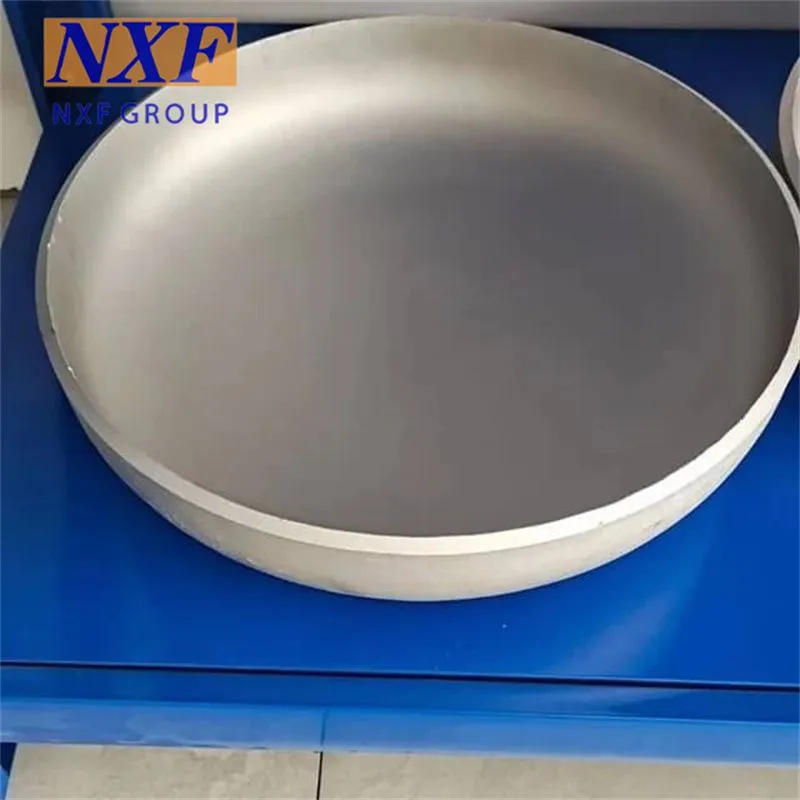

C276 Butt Welding Cap Product Picture

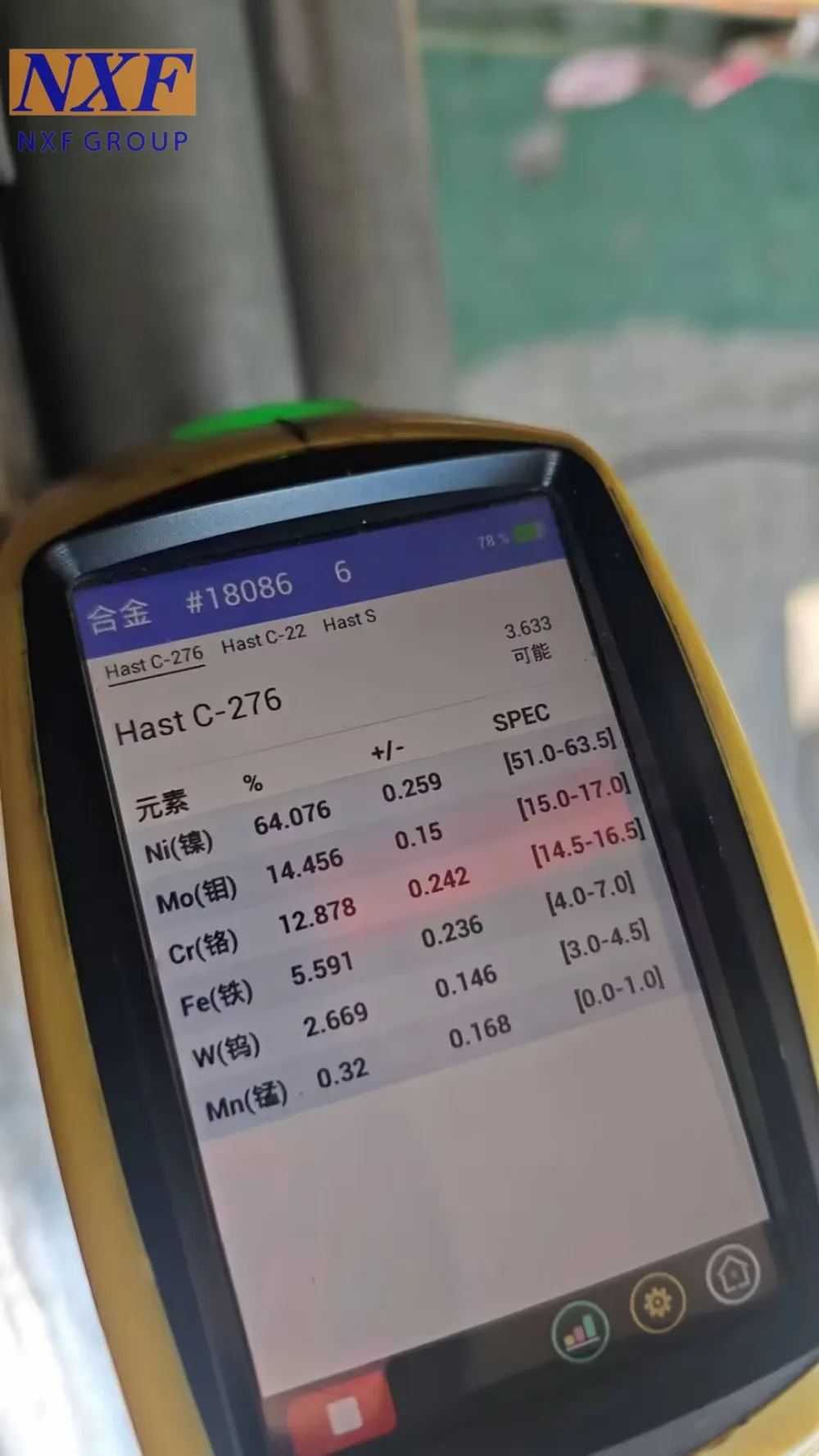

C276 PMI spectral testing proves

Product processing

C276 Butt Welding Cap Processing

The processing of pipe caps mainly includes steps such as pressing, solution treatment, and heat treatment. The details are as follows:

1.Pipe cap pressing: After the pipe cap is pressed and formed, solution treatment must be carried out immediately. The solution temperature is 1150℃±20℃, and the holding time is about 1.5 hours.

2.Pipe cap heat treatment: Before the pipe cap heat treatment, the temperature of the empty furnace rises to above 1000°C, and then the workpiece is put into the furnace. The temperature in the furnace is measured with a thermocouple, heated to 1150°C ± 20°C, kept for 1.5 hours, taken out of the furnace and placed in water for quenching, and cooled to below 300°C within 3-4 minutes.

The above is the basic processing process of pipe caps. It should be noted that different pipe caps may have different processing details and technical requirements, so the corresponding process specifications need to be strictly adhered to in actual production.

Our NXF GROUP advantage as follow

1.Our NXF GROUP have our own factory, and we can control the cost by producing by ourselves. We have a great advantage in price and can give you the lowest price based on best quality.
2.Our NXF GROUP can strictly control the quality. We have production, quality inspection, warehousing and other departments to coordinate and control the quality,Such as PMI and size testing.
3.Our NXF GROUP biggest advantage is 3S service. Small quantity, short time, special materials.
4.Our NXF GROUP have excellent quality certificate system and trademark certificate.
5.Our NXF GROUP have a comprehensive after-sales service guarantee, such as the transaction guarantee provided by International Station, as well as remote technical guidance and services.
6.Our NXF GROUP have a well-established logistics support system that can save you both time and money, providing you with a one-stop service.

Packing & Delivery

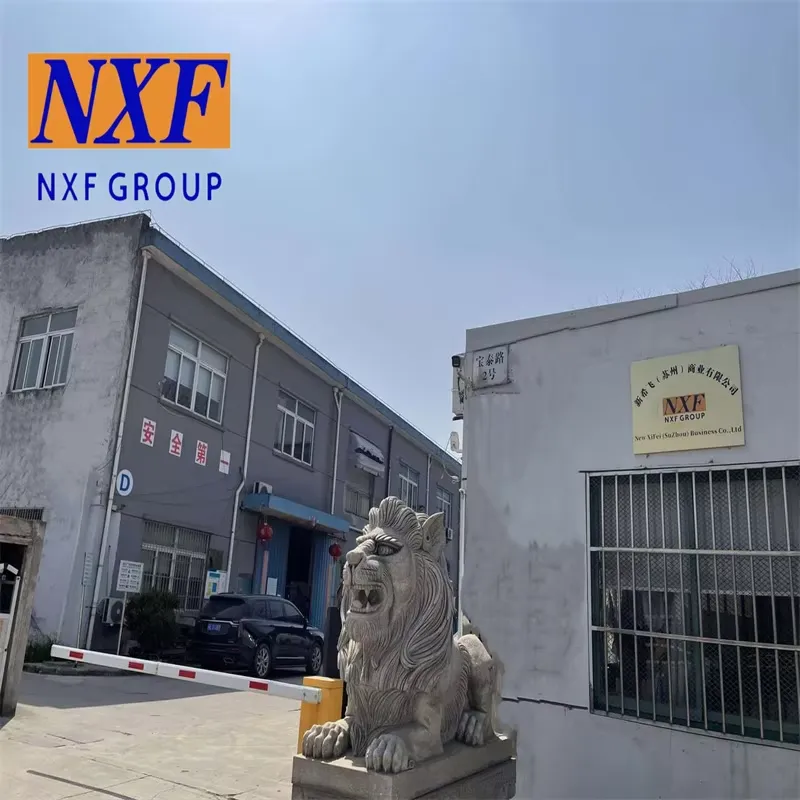

Company Profile

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals,machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories.Established in1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship." Our advantage:3S Service(Small Quantity/Short Time/Special Material)

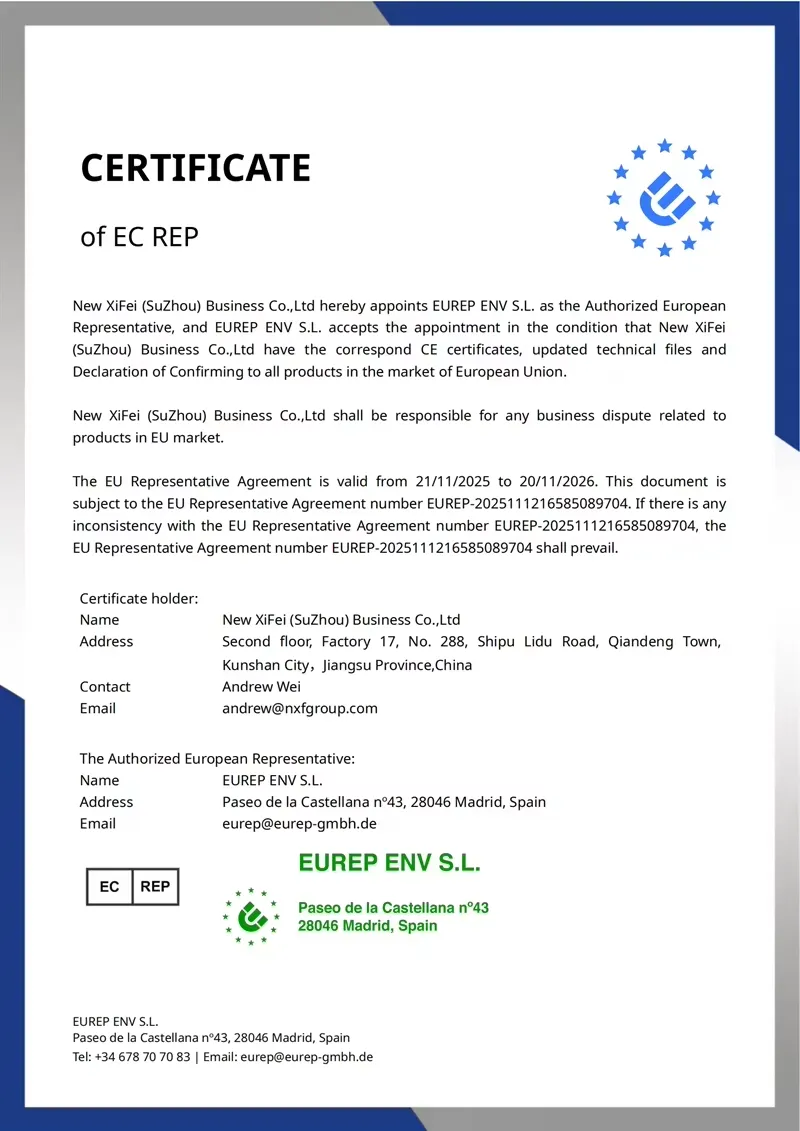

C276 Butt Welding Cap Certifications

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material)         We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Russian
